HBL4550
15A, 250V, 2 Pole, 3 Wire Grounding Receptacle
Features
Reinforced thermoplastic construction
Single piece, all brass contacts
Single point break-off tabs
Mounting strap tabs lock the body and base together
咨询热线：
产品描述
Ordering Information
| Description | Device Color | UPC | Catalog Number |
| Duplex, flush | brown | 783585002378 | HBL4550 |
Listings
Listed to UL 498
Fed. Spec. W-C-596
Certified to CSA C22.2 No.42
Specifications
| Face | RTP |
| Base | RTP |
| Contacts | Brass |
| Clamp | Brass |
| Ground Contact | Brass |
| Terminal Screws | Brass |
Performance
| Electrical | |
| Current Interrupting | Certified for current interrupting at full rated current |
| Dielectric Voltage | Withstands 2,000V minimum |
| Mechanical | |
| Terminal Accommodation | #18 AWG - #10 AWG solid or stranded copper wire only. |
| Terminal Identification | Terminals identified in accordance with UL 498 |
| Environmental | |
| Flammability | HB or better per UL94/CSA 22.2 No.0.17 |
| Operating Temperatures | Maximum Continuous 75°C; Minimum -40°C (w/o impact) |
Accessories
| Plug | HBL4570C |
| Wallplate or Weatherproof Cover | Duplex Openin |
Resources

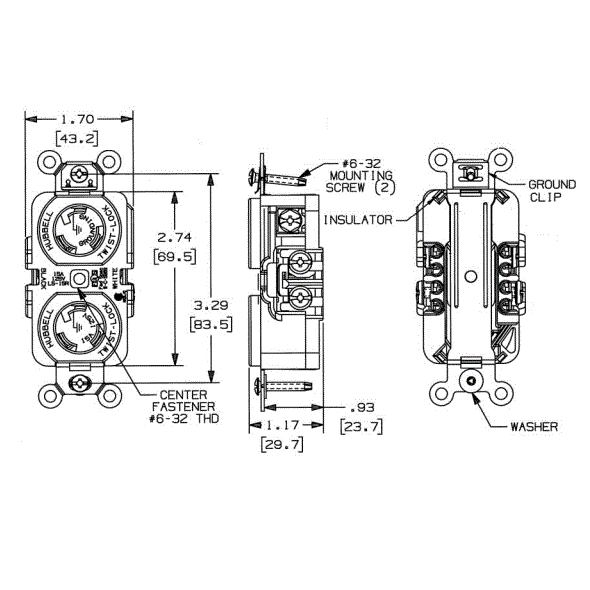

Customer Use Drawing
eCatalog
Installation Instructions
