General Description
FSMOS® MOSFET is based on Oriental Semiconductor’s unique device design to achieve low RDS(ON) , low gate charge, fast switching and excellent avalanche characteristics . The high Vth series is specially designed to use in motor control systems with driving voltage of more than 10V .
Features
|
|
Applications
|
|
Key Performance Parameters
|
Parameter |
Value |
Unit |
|
VDS |
150 |
V |
|
ID, pulse |
720 |
A |
|
RDS(ON), max @ VGS =10V |
5 |
mΩ |
|
Qg |
149 |
nC |
Marking Information
|
Product Name |
Package |
Marking |
|
SFS15R05HNF |
TO247 |
SFS15R05HN |

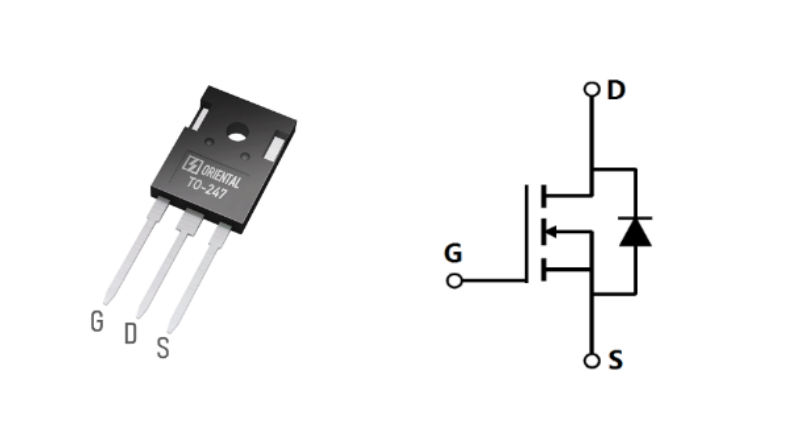

Package & Pin Information
Performance Parameters
Package
TO-247
Cfg.
N
VDS (V)
150
VGS (V)
20
ID (A) && Tc=25℃
180
Ron (Ω) && 10V
0.005
-
