General Description
The GreenMOS® high voltage MOSFET utilizes charge balance technology to achieve outstanding low on-resistance and lower gate charge. It is engineered to minimize conduction loss, provide superior switching performance and robust avalanche capability. The GreenMOS® Generic series is optimized for extreme switching performance to minimize switching loss. It is tailored for high power density applications to meet the highest efficiency standards.
Features
|
|
Applications
|
|
Key Performance Parameters
|
Parameter |
Value |
Unit |
|
VDS, min @ Tj(max) |
950 |
V |
|
ID, pulse |
36 |
A |
|
RDS(ON), max @ VGS =10V |
340 |
mΩ |
|
Qg |
54 |
nC |
Marking Information
|
Product Name |
Package |
Marking |
|
OSG90R340KF |
TO263 |
OSG90R340K |

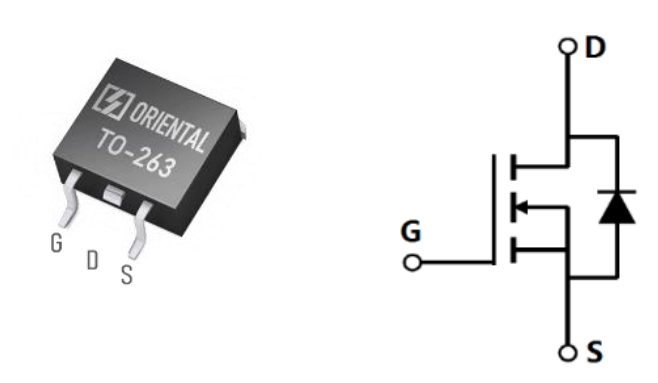

Package & Pin Information
Performance Parameters
Package
TO-263
Cfg.
N
VDS (V)
950
VGS (V)
30
ID (A) && Tc=25℃
12
Ron (Ω) && 10V
0.34
-
