General Description
FSMOS® MOSFET is based on Oriental Semiconductor’s unique device design to achieve low RDS(ON), low gate charge, fast switching and excellent avalanche characteristics. The high Vth series is specially designed to use in motor control systems with driving voltage of more than 10V.
Features
|
|
Applications
|
|
Key Performance Parameters
|
Parameter |
Value |
Unit |
|
VDS |
30 |
V |
|
ID, pulse |
180 |
A |
|
RDS(ON), max @ VGS =10V |
5 |
mΩ |
|
Qg |
25 |
nC |
Marking Information
|
Product Name |
Package |
Marking |
|
SFS03S05GF |
PDFN5×6 |
SFS03S05G |

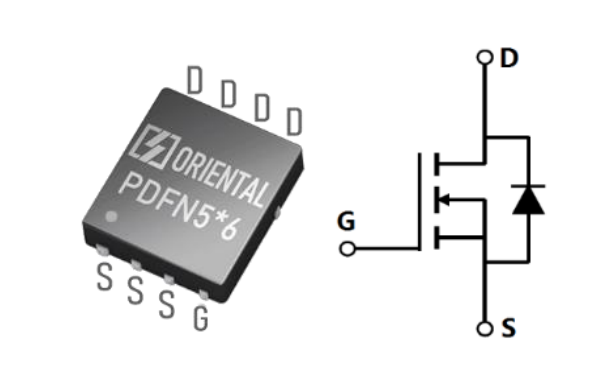

Package & Pin Information
Performance Parameters
Package
PDFN5*6
Cfg.
N
VDS (V)
30
VGS (V)
20
ID (A) && Tc=25℃
45
Ron (Ω) && 10V
0.005
-
