HBL5666C
15A, 250V, 2 Pole, 3 Wire Grounding Insulgrip® Plug
Features
Ribbed nylon housing is impact and chemical resistant
VARI-SIZE adjustable cord clamp
Fast lead assembly screws
Beveled housing prevents snagging
咨询热线：
产品描述
Ordering Information
| Description | Cord Diameter | UPC Number | Catalog Number |
| Black and white nylon | .230"-.720"(5.8-18.3) | 783585175607 | HBL5666C |
Listings
UL Listed to UL498 File E1706
CSA Certified to C22.2 No. 42 File 280
NEMA® WD-6 Compliant
NEMA® WD-6 Compliant
Specifications
| Housing/Cord Clamp | Nylon |
| Blade Holder | Nylon |
| Terminal Retainer | Clear Polycarbonate |
| Blades | .060 in. (1.5) Brass |
| Terminal Screws | #8-32 Brass , multiple drive |
| Terminal Clamp | Nickel plated steel |
| Assembly Screws | Nickel plated steel |
Performance
| Electrical | |
| Current Interrupting | Certified for current interrupting at full rated current |
| Dielectric Voltage | Withstands 2,000V minimum |
| Mechanical | |
| Terminal Accommodation | #18-10 AWG. Standed copper wire only |
| Terminal Identification | Terminals identified in accordance with UL 498 and CSA |
| Environmental | |
| Flammability | UL 94 HB or better |
| IP Suitability | IP20 |
| Operating Temperatures | Maximum continuous 75°C; minimum -40°C (w/o impact) |
Accessories
| Weatherproof Boot | HBL6017 |
Resources

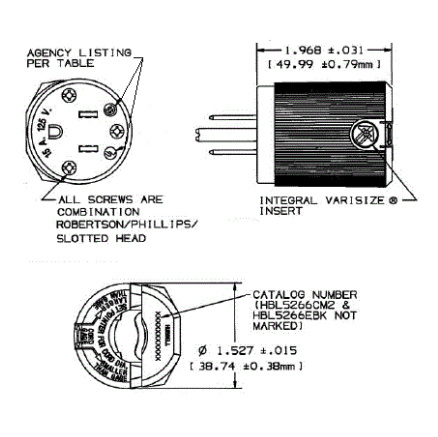

Customer Use Drawing eCatalog
