General Description

OST75N65HLMF uses advanced Oriental-Semi’s patented Trident-Gate Bipolar Transistor (TGBTTM) technology to provide extremely low VCE(sat), low gate charge, and excellent switching performance. This device is suitable for mid to high range switching frequency converters.

Features

  • Advanced TGBTTM technology
  • Excellent conduction and switching loss
  • Excellent stability and uniformity
  • Fast and soft antiparallel diode



Applications

  • PC power
  • Induction converters
  • Uninterruptible power supplies





Key Performance Parameters

Parameter

Value

Unit

VCES, min @ 25°C

650

V

Maximum junction temperature

175

°C

IC, pulse

360

A

VCE(sat), typ @ VGE=15V

1.2

V

Qg

466

nC



Marking Information

Product Name

Package

Marking

OST75N65HLMF

TO247

OST75N65HLMF

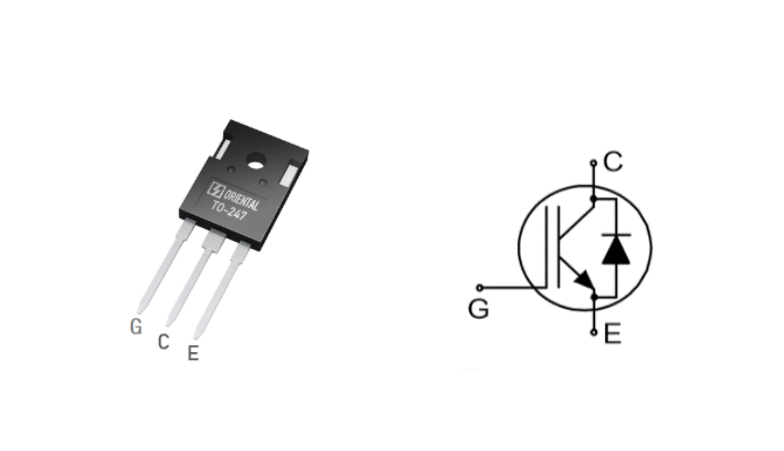

Package & Pin Information



Package

TO-247

VGE (V)

20

BV (V)

650

IC (A) && Tc=25℃

120

Vth_typ(V)

5.0

Von(V) && Vcesat

1.38

Von(V) && Vf

1.8
